New-Tech™ Spray Chamber Pictures (8 of 11)
Previous Spray Chamber PictureNext Spray Chamber Picture

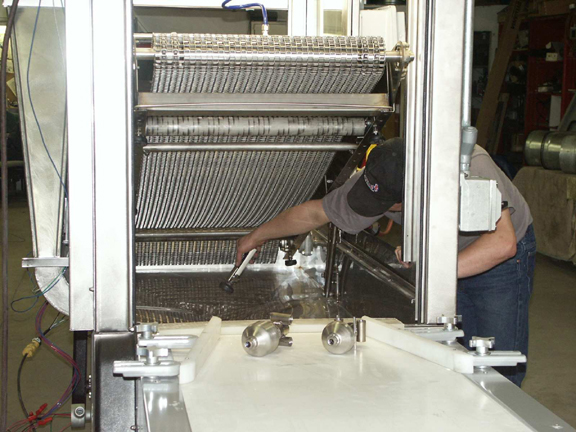

New-Tech Spray Chamber Picture #8
  • Spray Chamber Picture SC-08
  • Close Up View of the Spray for the Custom Spray Chamber Assembly shown in picture SC-01, SC-02, SC-03, SC-04, SC-05, SC-06 and SC-07.
  • This close up view shows the spray chamber’s hinged conveyor.
  • This view is shown looking though the feed table side entrance door showing the conveyor in the raised cleaning position.
