New-Tech™ Fan Platform Assembly Pictures
(7 of 12)
|

|
 |
- Fan Platform Assembly Picture FP-07

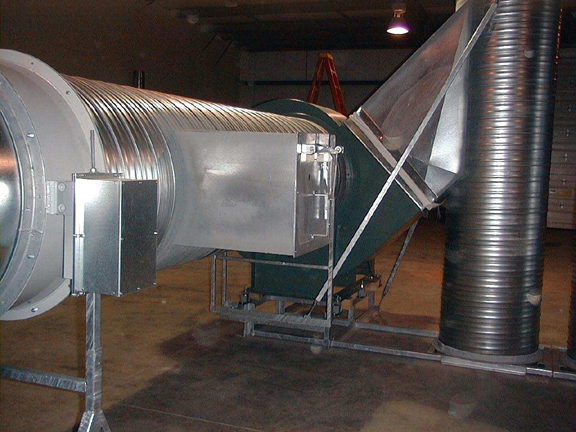

- Close Up View of the same double Fan Assembly shown in FP-05 and FP-06.
- This close up view shows the front and in between the inlet of the two exhausts fans. This close up view shows the damper actuator with cover and a relief damper with a counterweighted relief door.
- These relief dampers were used to maintain a constant fan stack exhaust velocity. When the motorized dampers upstream would minimize the exhaust from the building, the relief damper on the roof would open to maintain constant stack velocity.
|
|
